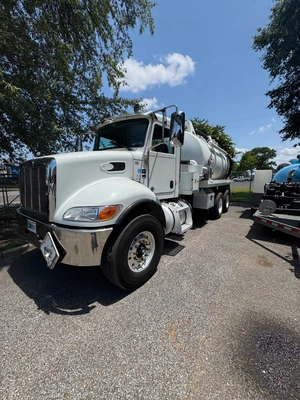

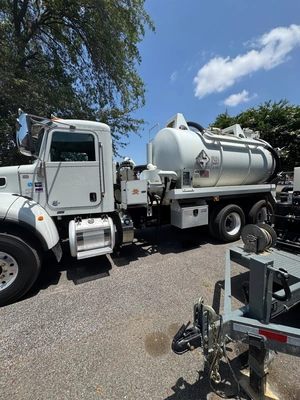

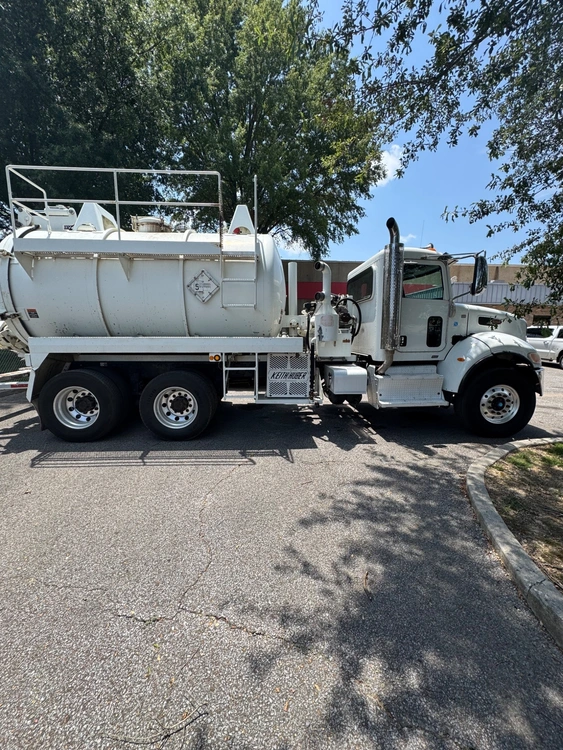

2016 Peterbilt Keith Huber

Description

ODEL CODE: SD30CD11WLP___H00002

STANDARD FEATURES:
Tank Capacity of 3,000 Gallons (70 barrels or 15 cubic yards)
ASME 25 psi MAWP & DOT 412
Single compartment code carbon steel tank with 5/16” shell material for long life
20" top manway with access ladder
Anti-surge baffles inside waste tank resists surging during starting and stopping
The Tank is mounted independent of the body and is secured to the body with a 3-point mounting system
A tank lift powered by a 3 stage double acting hydraulic cylinder mounted to the front head.
The tank primary shut off system with a 6" stainless steel float ball is located in the front top center of the tank with single isolation valve
The rear liquid level assembly includes a dual seal bushing with Viton o-ring seal and is replaceable from the outside of the tank
Hydraulic operated full opening rear door with integrated safety cylinder valve
4” Intake valve w/internal standpipe
Manual Betts 6” Discharge valve
Air Betts Mechanical Safety Stops; Rear door and tank
Power to run the vacuum pump is provided by a PTO driven hydraulic system
A four way valve provides control of vacuum loading and pressure discharge
Secondary moisture trap provides added protection for the pump
Systems Controls Inside a Nema 4 waterproof electrical
Tandem Axle Body
Full length open top enclosed fender/hose tray
Extended rear bumper for valve protection
18"x18"x30" aluminum storage cabinet bolted on the driver side
Rear Mounted Grounding Reel
Back-Up Alarm
Rear work light, LED running lights
Dual 4” camlock style muffler for down winding
Rear hose hooks
Vibrator Pad
