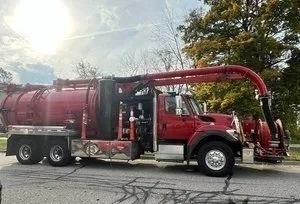

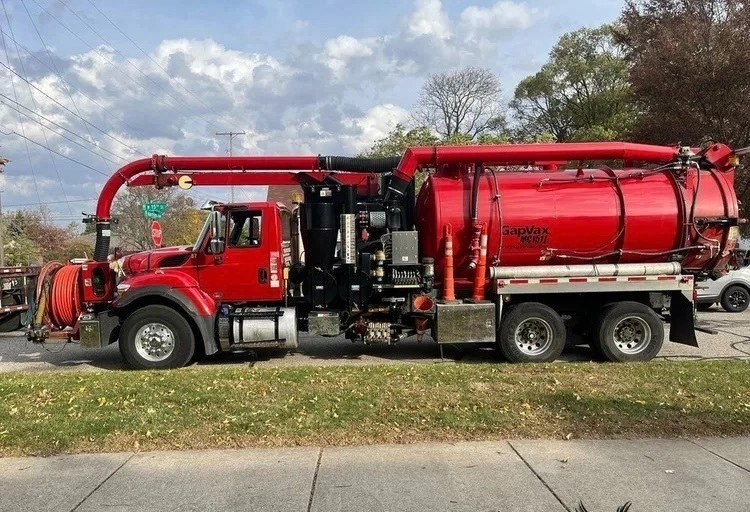

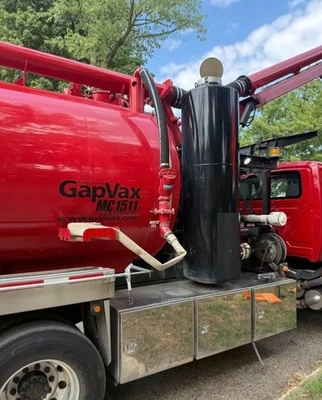

Used 2017 GAPVAX MC1511 | Combination Sewer Cleaners

Chassis Miles 25938
Engine Hours 5205 h
Blower Hours 2194 h
Debris Body Type Hydraulic Hoist
Debris Body Capacity (Cubic Yards) 11
Water Capacity 1500 gal
Water Pump Giant Tri-Plex 80 GPM @ 2500 PSI
Cold Weather Package Air Purge and Recirculation system
Blower Size/Type TS-56 Hibon 18"
Boom 8 in
Boom Type Telescopic
Electrical System Advanced Electronic Control System
Engine Make IH/Navistar
Engine Model N10
Transmission Allison Auto
Front Axle Weight 20000 lb
Rear Axle Weight 40000 lb
Remote Control Wireless and Corded remotes
Tank Type Vacuum
Tank Material 3/16" Stainless Steel
Tank Capacity 11 cubic yards
Water Capacity 1500 gal
TWO Tool Boxes - Stainless Steel, 16" High x 12" Wide x 18" Deep with fold down door - mounted in front bumper
Dual 10" Stainless Steel Float Balls Shut off in Debris Tank
Full opening rear tailgate with stainless steel "sure seal" rod and solid core gasket
Stainless Steel Filter Screens-Interior for Pump Off and Drain Valve (flange, elbow, screen)
50' x 1/2" Hand Gun Reel, Retractable w/ 50' x 1/2" Hose
Air Purge System for MC Jet System
MC Cold Weather Recirculation via Automatic Transmission
Hydro-Excavating Lance with Turbo Nozzle
Cab Mounted Control Panel for Blower, Water Pump, and Hydraulics
Operator control panel is housed in a weather proof, sealed box rated to NEMA 4 standards
Operator control panel includes: Light, reel speed and direction control, reel articulation control (band brake release), engine tachometer, water pressure gauge, hydraulic pressure gauge, vacuum gauge, electric engine throttle, water pump hour meter, blower hour meter, vacuum relief switch, joy stick for boom control, de-energize water pressure and relieve vacuum switch.
3 Function Remote Pendant with Minimum of 25 Feet of Cable - Up/Down, In/Out, Left/Right for the Boom
Emergency stop de-energize water flow valve and break vacuum
If Automatic Transmission - Interlock for Throttle Control
Low Water Level Display on Control Panel & Low Water/Water Pressure Off/Return to Tank
High Level Debris Light & Alarm - Auto Blower Relief
Blower Temp Gauge Wired to Air Operated Vacuum Relief
Body "Up" Light in Cab
Rear Door "Up" Light in Cab
Boom "Up" Light in Cab
Wireless Remote Control with Remote Water on/off Feature for front hose reel
Advanced Electronic Control System - Proportional Hydraulics
Advanced Electronic Control System

Front chassis frame mounted hose reel with 180 degrees pivot arc articulation toward the curb side
Manual telescoping sewer hose level wind
800' hose reel capacity of 1" hose powered via hydraulic motor & gear box mounted directly to the reel frame
1-1/2" Heavy duty swivel joint on hose reel spool for water, rated to 4000 PSI and 120 gpm working pressure
GapVax Reel-Count Digital Footage Counter
Automatic Hose Level Wind
Interior Hose Expansion Ribs - Highly Recommended for 600' of Hose or More
Hose Protection Sleeves through pivot bearing/Double Roller
Strobe Beacon Light - Front
Strobe Beacon Light - Rear
Addition Strobe Light Front or Rear (ea.) Add
(1) Boom Work Light - Standard
(1) Rear Work Light - Standard
(1) Side of Truck / Pump Compartment Work Light
Three Additional Work Light - Boom, Rear, Pump Compartment (Per Pair) Must Match with H5 or H6 or H7
Upgrade to LED Work Lights Add (Per Pair) Must Have H5, H6, H7, and must have option H8 - Three Pair
Hand Spot Light w/25' Cord and Retractable Reel
Truck-Lite LED. Stop, Turn, and Tail Lights
Truck-Lite LED. Running (Marker) Lights
Upgrade Stop/Tail/Turn Light Box to Polished Stainless Steel
Traffic Advisor - Straight - LED - 72" Wide
Whelen ION Super LED Flashers (non-synchronized), 2 on each side front @ 45 degrees, 2 on each side middle @ 45 degrees, 4 on each side rear (1 on side, 1 @ 45 degrees, 2 on rear), total quantity of 16 light heads, all light heads to be mounted with the 4" width horizontal
Light Box - Single
Light Box - Triple
1" Sewer Hose - 2,500 PSI x 600 ft. Plastic
Back-up Camera System with Color Monitor - Stand Alone System
Upgrade Tube Trays to Polished Stainless Steel
